Specifications (상세스펙)
|
|
ㆍBRAND WEBSITE : SCHWINN |
|
ㆍ제품 LINK : Vantage F2
|
|
ㆍTYPE(분류) : HIBRID |
|
ㆍYEAR(출시연도) : 2015 |
|
ㆍFRAME(프레임 재질) : Aluminum |
| ㆍFrame : Schwinn S.R.T. (Smooth Ride Tech) endurance frame with elastomer technology, rack and fender mounts |
|
ㆍFRAME : Schwinn alloy sport with alloy steer, 1 1/8", rack and fender mounts |
|
ㆍWHEEL SIZE(휠사이즈) : 700c |
| ㆍSize : SM, MD, LG, XL |
| ㆍColors : Gray |
| ㆍHandlebar type : flatbar |
| ㆍHandlebar : Schwinn S2 sport alloy, 31.8 |
| ㆍStem : Schwinn S2 sport alloy, 31.8 |
| ㆍShifter Category : Rapid Fire |
| ㆍShifter Brand : Shimano |
|
ㆍGear shifter(변속레버) : Shimano EZ Fire EF-51 STI |
|
ㆍFRONT GEAR SPEED : 3 |
|
ㆍREAR GEAR SPEED : 8 |
| ㆍFront Derailleur(브랜드포함 명칭) : Shimano Altus FD-M191 |
| ㆍRear Derailleur(브랜드포함 명칭) : Shimano Acera RD-M360 |
| ㆍBrake set : Promax mechanical disc, 160 mm rotors |
| ㆍBrake Levers : Shimano EZ Fire linear-pull STI |
| ㆍFreewheel type : Freewheel |
| ㆍFreewheel(Cassette) : Sunrace 11-32T, 8-speed |
| ㆍChain : KMC Z72 |
| ㆍChainwheel : SR Suntour NEX alloy triple 48/38/22T |
| ㆍBottom bracket : Sealed cartridge |
| ㆍRims : Alex DC-26 alloy double wall 32H |
| ㆍSpokes : 14G stainless |
| ㆍTires : Kenda K-193 700 x 32 |
| ㆍSeatpost : Schwinn S2 sport alloy, 27.2 x 350 mm |
| ㆍSaddles : Schwinn S1 sport ergo |

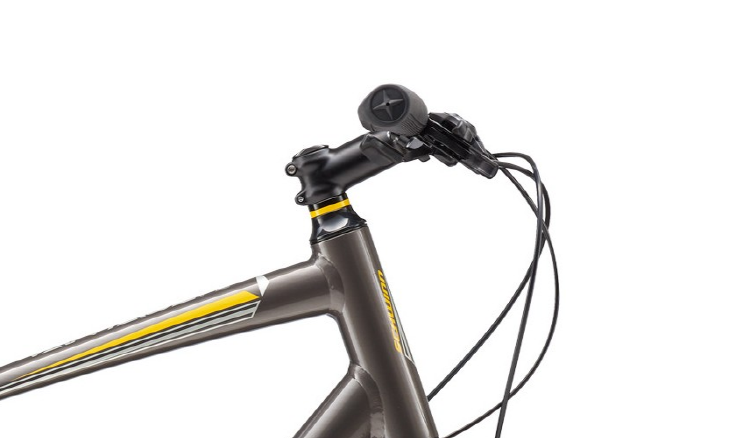

ㆍ사이즈 지오메트리 :  41c0ccb9ccc1f6_001.png |

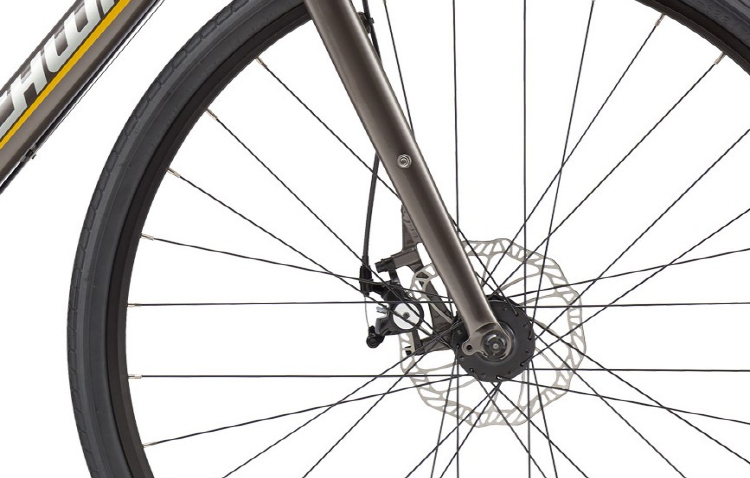

| ㆍ추가이미지 1 : 41c0ccb9ccc1f6_002.png |

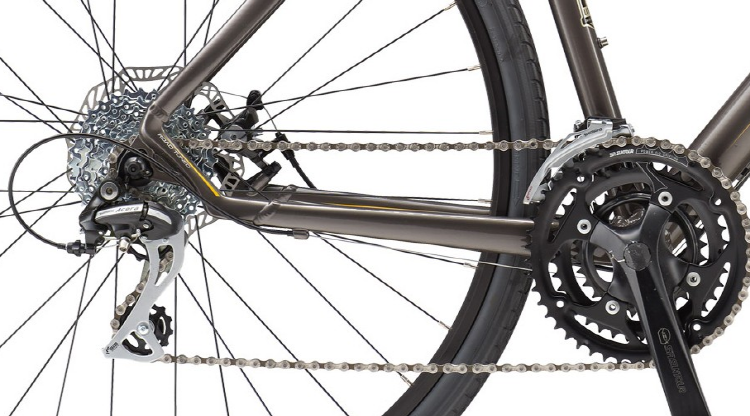

| ㆍ추가이미지 2 : 41c0ccb9ccc1f6_003.png |
| ㆍ추가이미지 3 : 41c0ccb9ccc1f6_004.png |

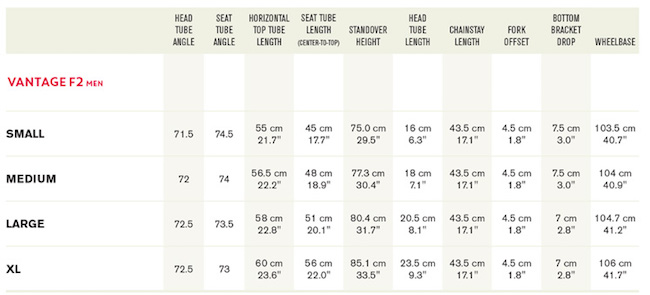

| ㆍ추가이미지 8 : vantagef2_051915.jpg |
| ㆍ실구매 가격대 : 70~79만원 |
